94.5-97 7.3L CNC Fab E4OD Transmission Cooler Stainless Line Kit - 425005

CNC Fabrication Model 425005

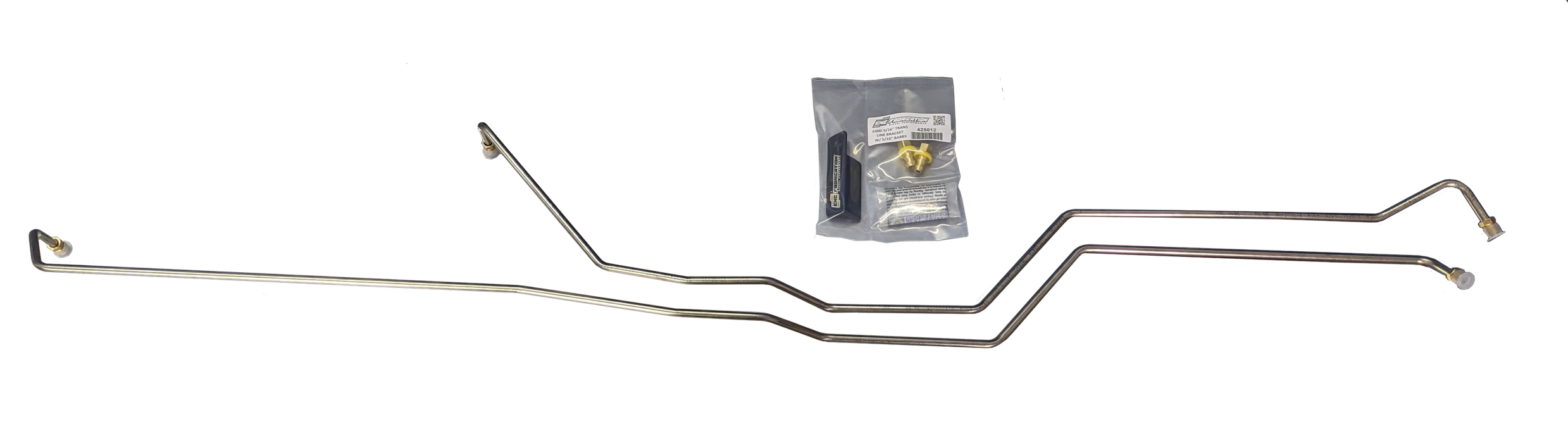

Replace your rusted 94.5-97 E4OD 7.3L Ford Powerstroke transmissions lines with an upgraded CNC Fabrication stainless steel line kit.

This kit is to replace your factory E4OD transmission cooler lines with 5/16" hose barbs to match the factory transmission cooler ports.

NOTE:

If you need transmission hose, we recommend the Gates brand as that hose works very well with Parker PushLok barb fittings.

Please be mindful that these lines are one piece, 60" long, and there is a chance they may get slightly bent by the shipping company.  This tubing is extremely durable and can easily be bent back into shape.

If you have already installed a 6.0L Powerstroke transmission cooler with the 1/2" ports, then you will need to purchase adapters separately.

Not all trucks came with the transmission lines to the radiator, but if your does, then we recommend by-passing or removing the lines going to the bottom of the radiator. When the heat exchanger inside the radiator fails, it will send coolant into your transmission and will cause the transmission and torque converter to fail.  It is not year specific on whether Ford had the ports in the radiator as we have seen on many years of truck in the shop not have them.

FEATURES:

Fits 94.5 through 97 7.3L with the E4OD Transmission
Domestic 304 stainless steel tubing
Made In-House on our 3 axis CNC tubing bender
5/16" barb fitting to match the factory cooler
Genuine Brennan and Parker fittings

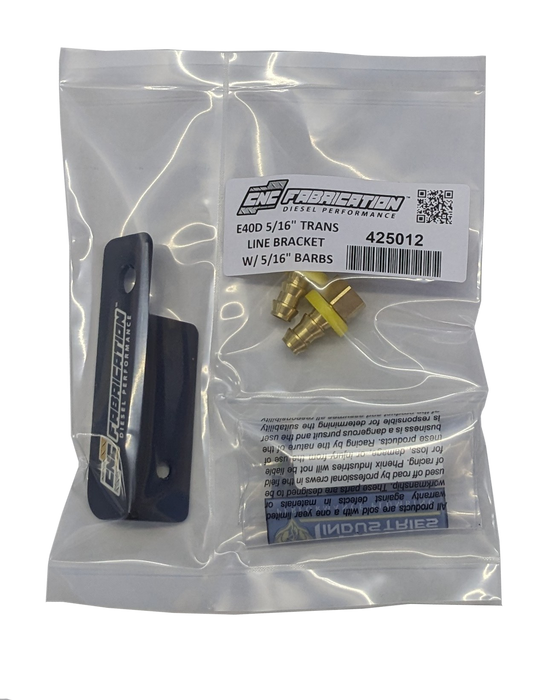

Includes Powdercoated mounting bracket
