94.5-97 7.3L CNC Fabrication Passenger Side Replacement Hpop Line No Fittings CNC Fabrication

94.5-97 7.3L CNC Fabrication Passenger Side Replacement Hpop Line No Fittings CNC Fabrication

by Cnc
$ 1,645.00 - $ 1,645.00
$ 1,645.00
$ 1,645.00 - $ 1,645.00
$ 1,645.00
CNC Model 424007

This line is a replacement passenger side line for the 94.5 through 97 for the CNC Fabrication line kit

If you have e-fuel you can also use the SD passenger line for a cleaner install.

Features:

  • 94.5-97 7.3L Passenger Side Replacement Hpop Line No Fittings
  • All new Genuine Brennan fittings
  • DuPont Teflon lining just like OEM
  • Burst pressure rating of 16,000psi
  • Working temperature rating of 400 Degrees F
  • Nominal working pressure is 5000psi
  • High quality Viton o-rings
  • Made in the USA in Our Shop

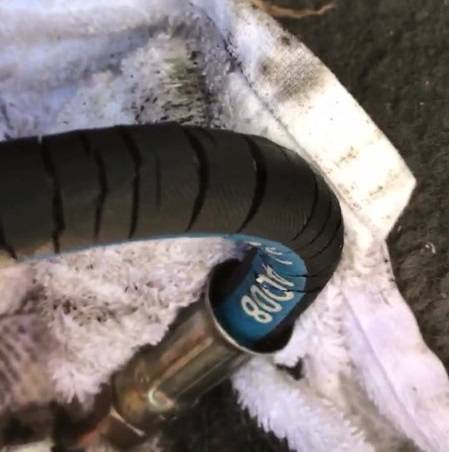

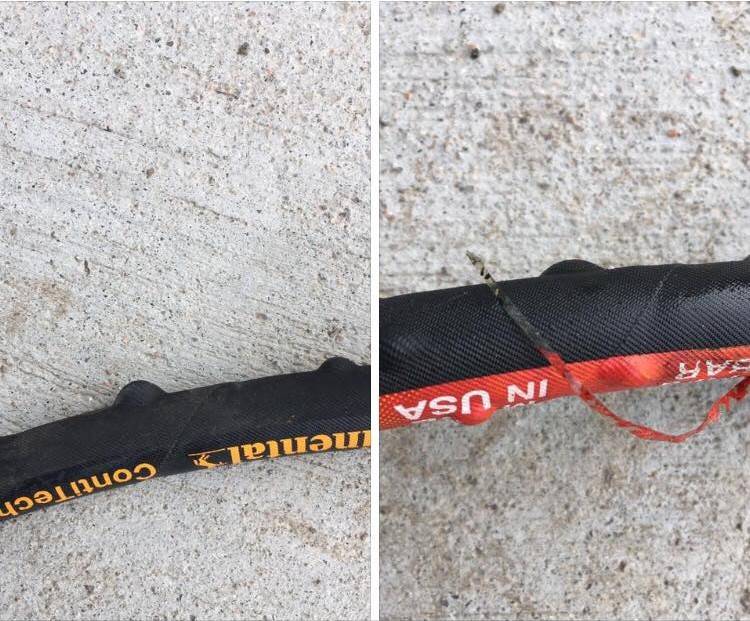

We know it may be cheaper for those wanting to save some money and have a local hydraulic shop make lines, but in our 25yrs experience, it is not advisable due to the amount of thermal cycling and engine sees. Normal hydraulic is meant for normal hydraulic use, NOT on the engines. See pictures of what happens to our competitor lines. Dry rot and blistering of the hose.

Note: If you are unsure of installing this line yourself, seek out a competent and qualified technician to install the lines.

Installation:

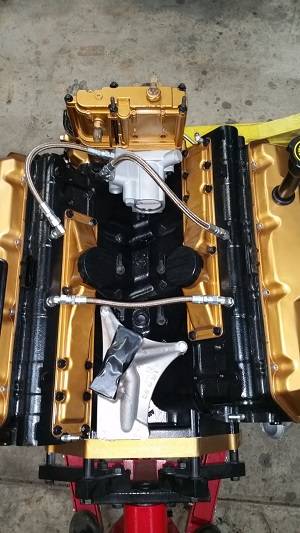

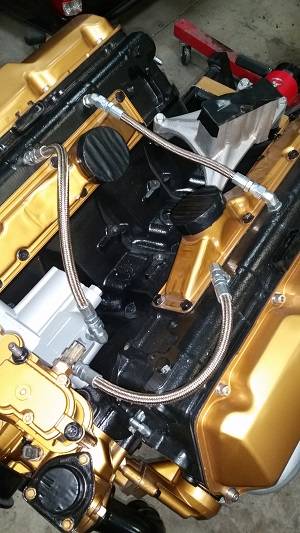

Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example. The fittings are marked with numbers to label install location. After installation, be sure there is no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it. Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary.

If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.

Hose Identification: 98.5 Superduty 2 Line-Both Sides Are Same Length. 94.5-97 OBS 2 Line- Passenger Is Longer Of The 2.

Pump Fittings: 28FT/LBS Head Fittings: 23FT/LBS Hose Ends: 21FT/LBS
