Pusher 3.5" MEGA Intake System with Passenger-Side Intercooler Tube for 2013-2018 Ram Cummins

This product is not emissions compliant. Off-road use only.

The Pusher 3.5" MEGA Intake System with our 3.5" Passenger Side Intercooler Tube replaces all three of the pre- and post- intercooler piping and stock intake manifold with 3.5" mandrel bent tubing, dramatically increasing the flow efficiency of your charge system.

Our 6.7L MEGA Intake Manifold is built around a 3.5" inlet that smoothly transitions to two 3" mandrel bent tubes. The twin tube design nearly doubles the outlet size of the stock manifold while minimizing the impact of the initial section of the number one injector line. Our design also allows for the use of a short bolt in place of the long driver-side flange bolt that passes right through the center of the stock manifold air plenum. This frees up airflow even more while maintaining the stock six bolt pattern for a proper seal. With this vast improvement over the stock manifold you can expect quicker turbo spool, lower EGTs, and less over all strain on your motor. This manifold also includes instructions, a polished stainless dipstick mount, port plugs, OEM gasket and hardware to make installing this intake extremely easy. This manifold is for off road use only.

Our 3.5" intercooler tubing is built using mandrel bent .060" thick tubing, and is a drastic improvement over factory 2.4" ID plastic plumbing. Our intake system also includes heavy duty 5-ply silicone couplers and stainless T-bolt clamps to make install simple. When using this kit, you do not have to try and cut the factory steel band off your tube in order to save the factory boots: just loosen the factory clamps and install the supplied parts.

Intercooler Compatibility: This product was designed to work with the factory intercooler, and as such will work with aftermarket intercoolers that mimic the factory inlet / outlet locations. If you have an aftermarket intercooler that differs from that, please call for compatibility. By replacing your restrictive factory system with a Pusher Intake System, you can expect results of:

• 50-200 degree Fahrenheit drop in EGTs
• 0.5-1 mpg increase
• Significant gain in throttle response
• Faster turbo spool
• Increased durability

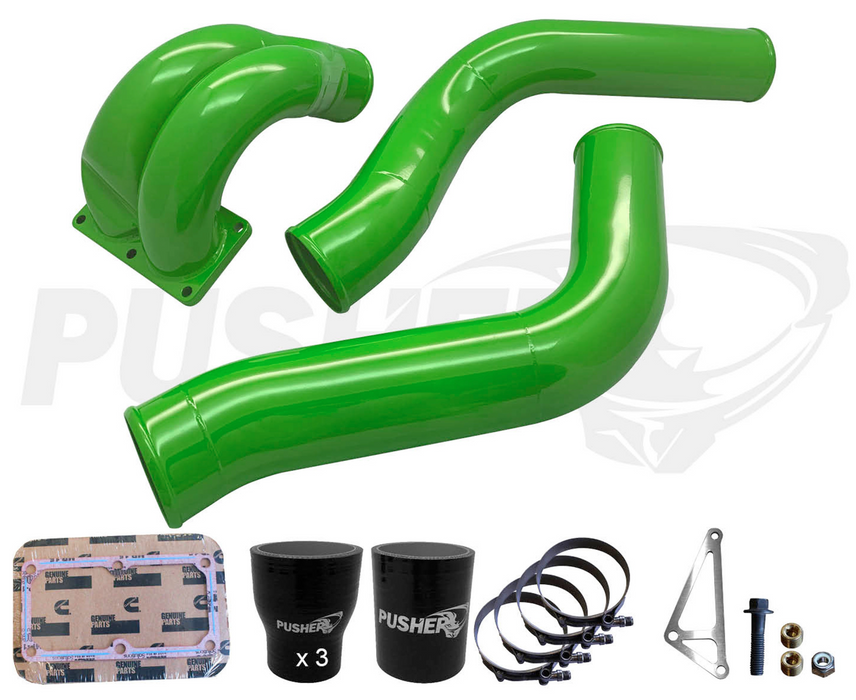

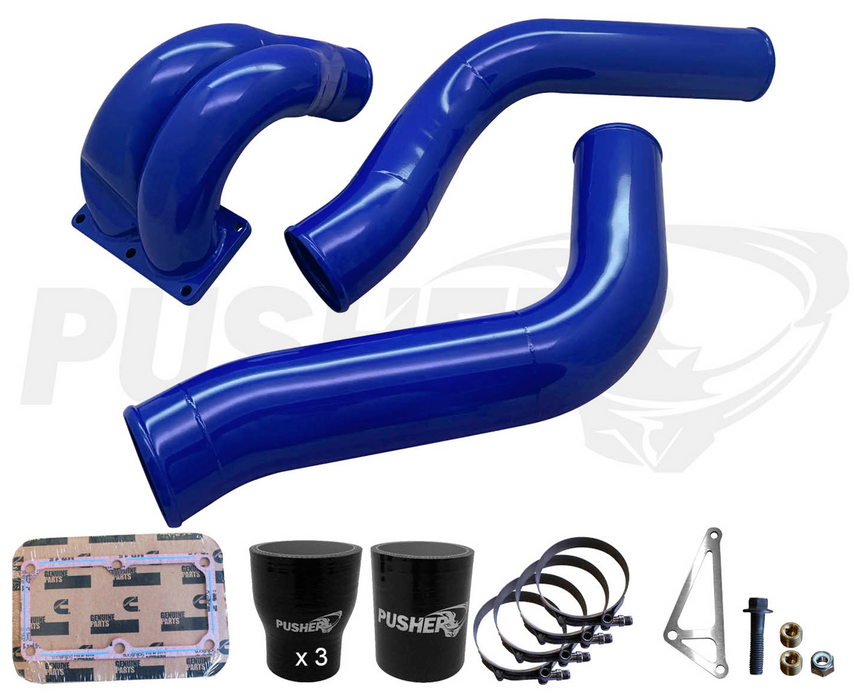

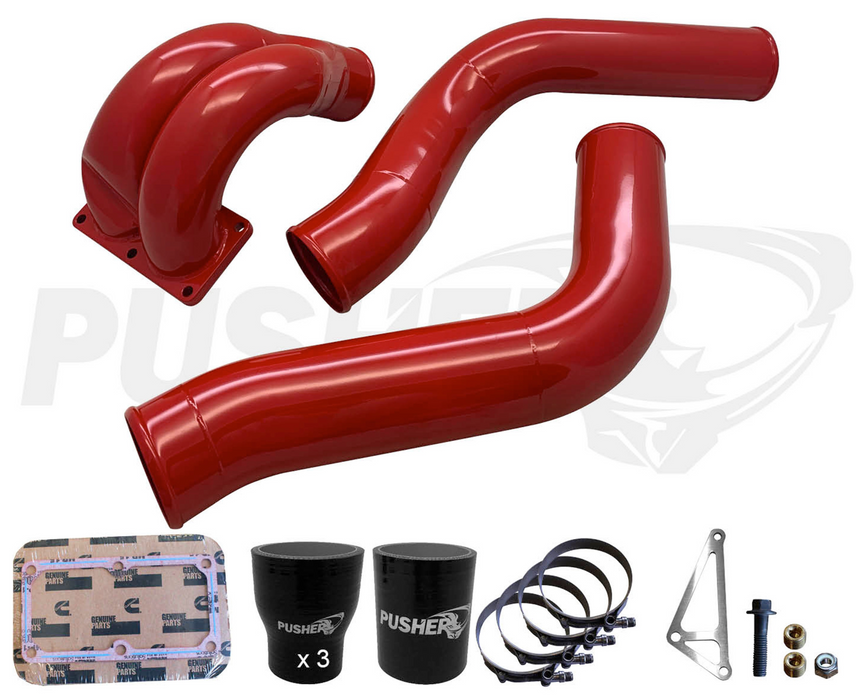

In addition to the intake manifold and intercooler tube, our system includes factory Cummins gaskets and hardware, heavy duty 5-ply silicone couplers and stainless T-bolt clamps, port plugs, a stainless dipstick mount and full-color instructions with photos: everything you need for a seamless install.

FREQUENTLY ASKED QUESTIONS

1. Why is there a big dent in the manifold?

The dent is for the #1 injector line that passes right over the inlet to the head. All aftermarket intake manifolds for the 6.7L trucks have something like this built in. Due to how much thinner our wall thickness is over competing cast manifolds as well as the unique geometry of our twin tube design, the Pusher 3.5” Mega Intake manifold has the smallest “dent” on the market.

2. Is this manifold EGR compatible?

No, it has no provisions for the EGR valve which mounts to the factory manifold. Subsequently, this system is not emissions compatible, and for off-road use only.

3. Does this manifold have a port for the factory MAP sensor?

Yes, it is relocated to the under side of the manifold for a cleaner look. Once the EGR is shut off that is the only sensor on the manifold that is necessary.

4. Do I need to purchase a throttle valve replacement with this manifold?

No, this manifold replaces the entire stock manifold-throttle valve assembly.

5. Does this manifold come with a new gasket?

Yes, all of our manifolds come with new factory Cummins gaskets, hardware, and any other necessary hardware.

6. Does this manifold work with the stock heater grid and or a heater grid delete?

Yes, the heater grid and the deletes are below the manifold and do not effect it.

7. Does this manifold work with the factory driver-side charge tube?

Yes, it is a direct replacement for the stock manifold.

8. Does this manifold work with dual CP3’s?

It works with the vast majority of dual CP3 kits that we’ve seen. We recommend purchasing a “natural finish” manifold so that if any modifications have to be made to it, you won’t be damaging the coating you would have otherwise paid for.
