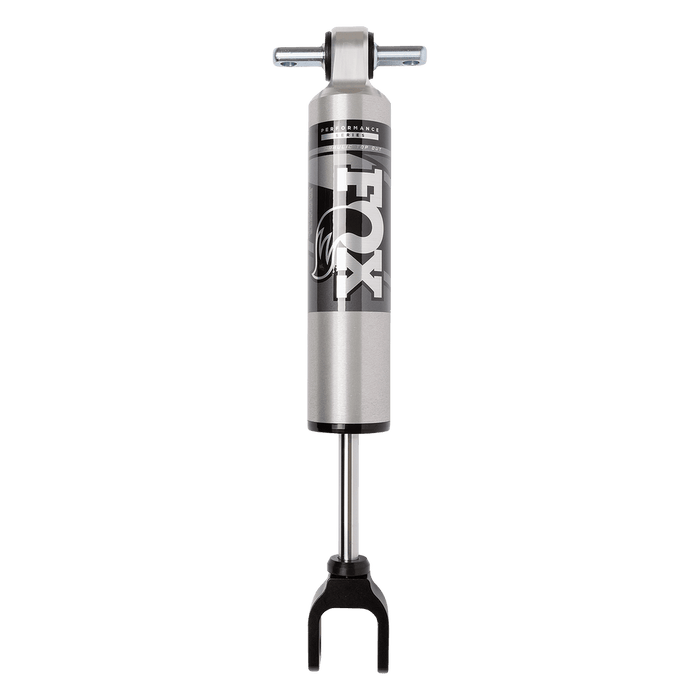

Fox 11-19 GMC Sierra 2500/3500 HD 0-1in Lift Front 2.5 Performance Series Smooth Body IFP HTO Shock
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
| FEATURES | 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
| TRAVEL | 4.89 |
| FRONT LIFT HEIGHT | 0-1 |
| EXTENDED LENGTH | 17.95 |
| COMPRESSED LENGTH | 13.07 |
| TOP MOUNT | Bar Pin |
| BOTTOM MOUNT | Clevis |
| FITMENT NOTES | Lift: 0-1 inch |
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2011-2019 | Chevrolet | Silverado 2500 HD | LT |
| 2011-2019 | Chevrolet | Silverado 2500 HD | LTZ |
| 2011-2019 | Chevrolet | Silverado 2500 HD | WT |
| 2015-2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2011-2019 | Chevrolet | Silverado 3500 HD | LT |
| 2011-2019 | Chevrolet | Silverado 3500 HD | LTZ |
| 2011-2019 | Chevrolet | Silverado 3500 HD | WT |
| 2015-2019 | GMC | Sierra 2500 HD | Base |
| 2011-2019 | GMC | Sierra 2500 HD | Denali |
| 2011-2019 | GMC | Sierra 2500 HD | SLE |
| 2011-2019 | GMC | Sierra 2500 HD | SLT |
| 2011-2014 | GMC | Sierra 2500 HD | WT |
| 2015-2019 | GMC | Sierra 3500 HD | Base |
| 2011-2019 | GMC | Sierra 3500 HD | Denali |
| 2011-2019 | GMC | Sierra 3500 HD | SLE |
| 2011-2019 | GMC | Sierra 3500 HD | SLT |
| 2011-2014 | GMC | Sierra 3500 HD | WT |
